Filter

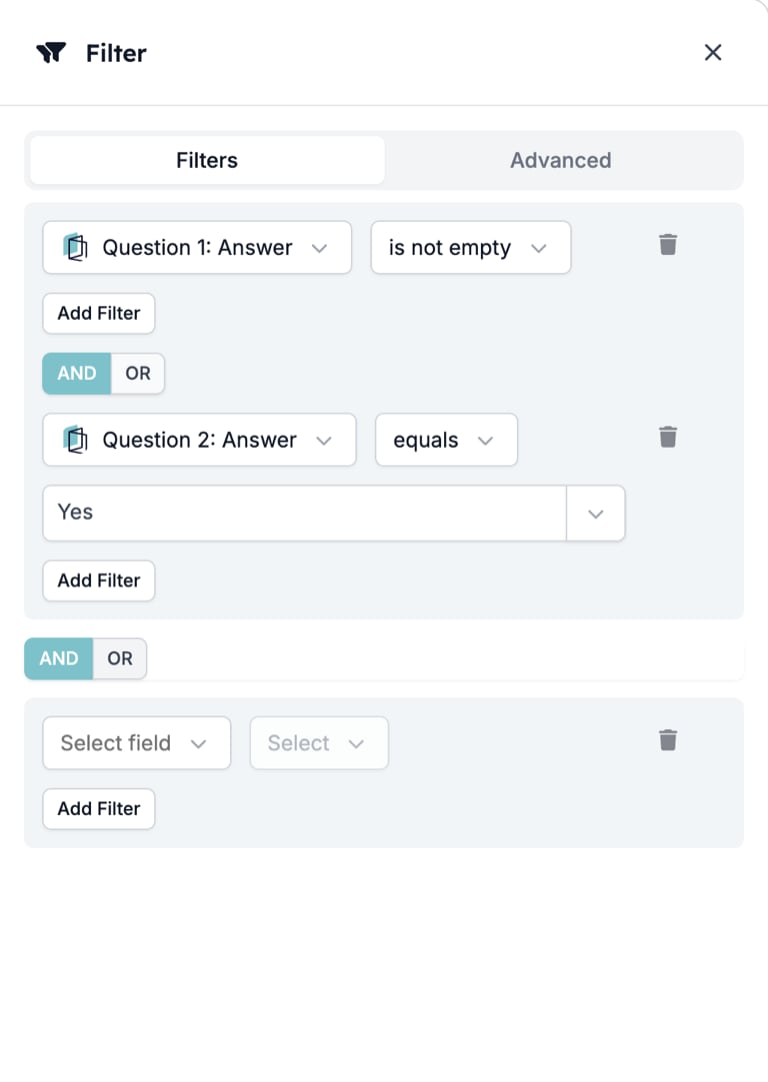

Filter decides whether the run continues. When the conditions pass the run moves to the next step; when they do not, the run stops here. The drawer is headed Filter with tabs Filters and Advanced.

​

Settings

• Field. The Select field box. Type to search: “2: Answer” finds “Question 2: Answer”. The list holds the event’s fields and the outputs of earlier steps.
• Operator. The Select box beside the field. Disabled until a field is chosen. The operators offered depend on the field’s type, listed below.
• Value. A box that appears for operators that compare against something. is empty and is not empty have none.
• Add Filter. Adds a row to the same set.
• Add New Set. Starts a new set below the first.
• AND / OR. A toggle that appears between two rows, and another that appears between two sets. Default AND. Within a set it decides whether every row or any row must pass. Between sets it decides whether every set or any set must pass.
• Unique Constraints. On the Advanced tab. Pick fields, and the Filter passes only once for each combination of their values. With an identifier and a status field selected, a record passes for a given status once, however many events it produces with that status.

​

Operators

Fields that hold a range or a set of values also offer between, one of, and not one of.

​

On the canvas

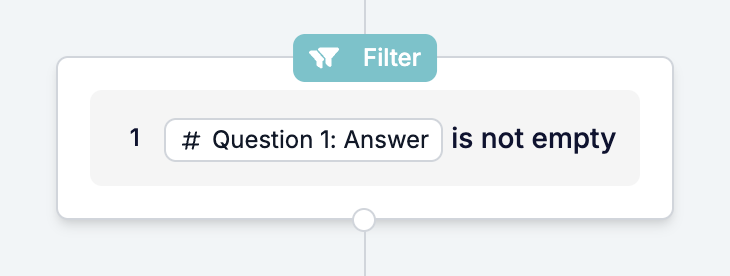

The card shows a Filter badge, the set number, and each row as field, operator, value.

​

What it outputs

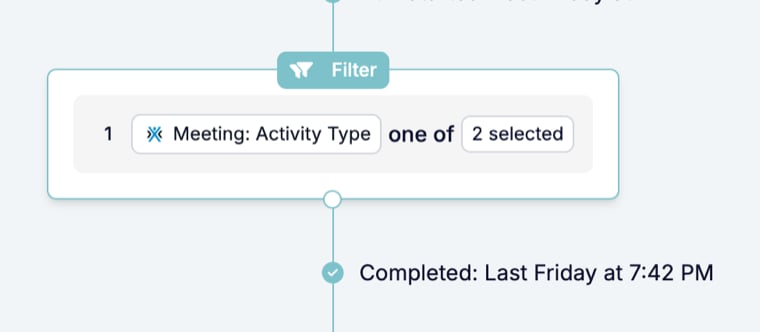

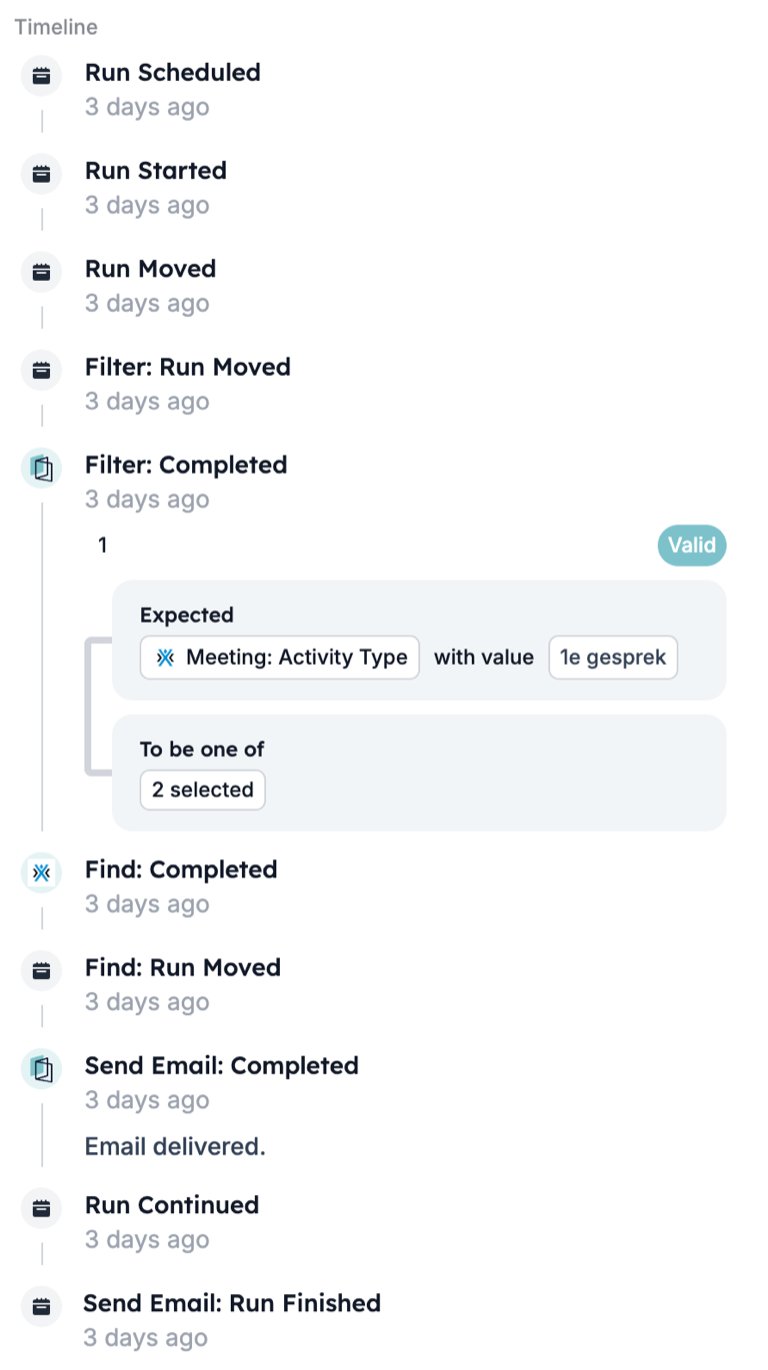

Nothing new. The variables available after a Filter are the same as before it. On the run page a passed Filter carries the line “Completed” with the time. The timeline records “Filter: Run Moved”, then “Filter: Completed” with each set marked Valid and the value it expected against the value it found.

​

What stops the run

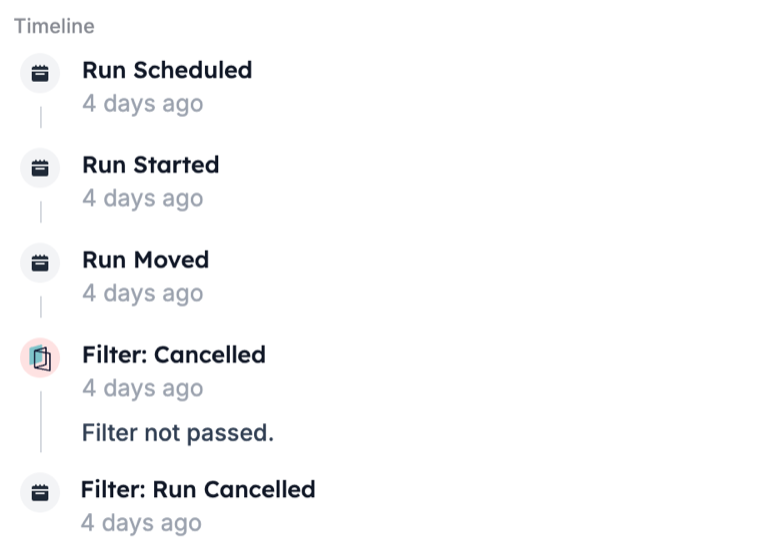

Conditions that do not pass. The timeline records “Filter: Cancelled” with the message “Filter not passed.” followed by “Filter: Run Cancelled”. Steps after the Filter show no status line, and in the runs list the run’s Step column reads “Filter”. A Filter inside a Split stops only its own branch. See Split. Other reasons a run can stop are listed in Run cancellation reasons.

​

Patterns

• Guard the start. A Filter as the first step stops runs the start cannot exclude on its own, such as a response with an empty answer to the question that matters.
• Check again after a wait. A Delay then a Filter confirms the record still qualifies once the wait is over. A candidate placed in the meantime never gets the follow-up.
• Fire once per status. A unique constraint on the record’s id and its status field lets a status change through once, even when the app sends the same update more than once.
• Choose Split for two outcomes. A Filter ends the run on a no. When both yes and no need steps, use a Split with a Filter branch for each.

​

Common mistakes

• Saving a row without an operator. The drawer saves it and the canvas shows the raw key enums.conditions.undefined in place of the operator. Open the Filter again and pick one.
• Searching by number alone. “Question 2” also matches “Question 12”. Type part of the question’s title as well.
• Expecting a skipped step. A Filter that does not pass cancels the run, it does not skip to the next step.
• Mixing AND and OR without sets. Rows in one set share one toggle. To combine “A and B” with “C”, put A and B in one set, C in another, and set the toggle between the sets to OR.

​

Related

• Split runs a Filter per branch instead of stopping the run.
• Setup holds the start filter, which decides whether a run begins at all.
• Run cancellation reasons explains where to read the message a stopped run leaves.
